CNC Metal Laser Cutting Service
In the beginning, Sharan Elecmech was a production saw shop, and it remains so today. We have become a trusted manufacturing partner that provides high-quality, efficient production, short lead times and unparalleled customer service. Our CNC metal cutting service offers a wide variety of high-speed, precision CNC metal cutting machines. There are a few factors that determine which metal laser cutting method is best for a given material. We’ve got a cutting solution that’s just right for you. Weighing up to 10,000 pounds, this machine is able to lift and move materials up to 60 feet long.
The Mechanics of CNC Laser Cutting
There is just one wavelength or colour in a laser beam; it is a column of very high-intensity light. CO2 lasers typically have an infrared wavelength, which means they are imperceptible to the human eye. The beam passes through the machine’s beam path at a diameter of roughly 3/4 of an inch from the laser resonator. A number of mirrors, or “beam benders,” may be utilised before eventually focusing the light onto the plate. Before hitting the plate, the laser beam passes through the nozzle’s bore. Compressed gases, such as oxygen or nitrogen, may also be passing through the nozzle bore.
In the laser cutting head, a specific lens or a curved mirror may be used to focus the laser beam, and this is accomplished. For the focus point to be absolutely circular and constant, as well as centred in the nozzle, the beam must be carefully focused. When the beam is concentrated into a single point, the heat density at that location is very high.
Rapid heating, melting and vaporisation are all possible because of the high power density. A typical “oxy-fuel” burning process may be started by the laser beam when cutting mild steel, and the laser cutting gas is pure oxygen, similar to an oxy-fuel torch.

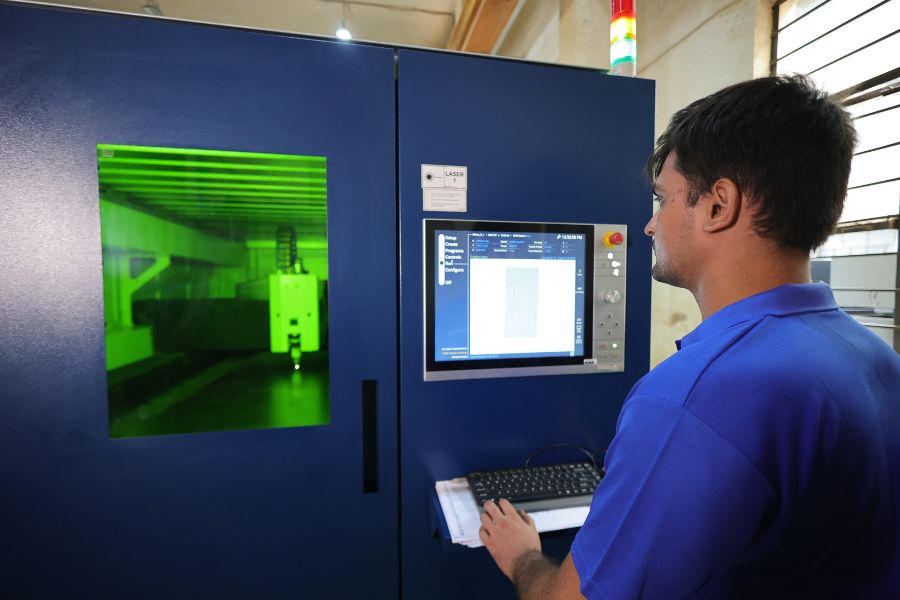

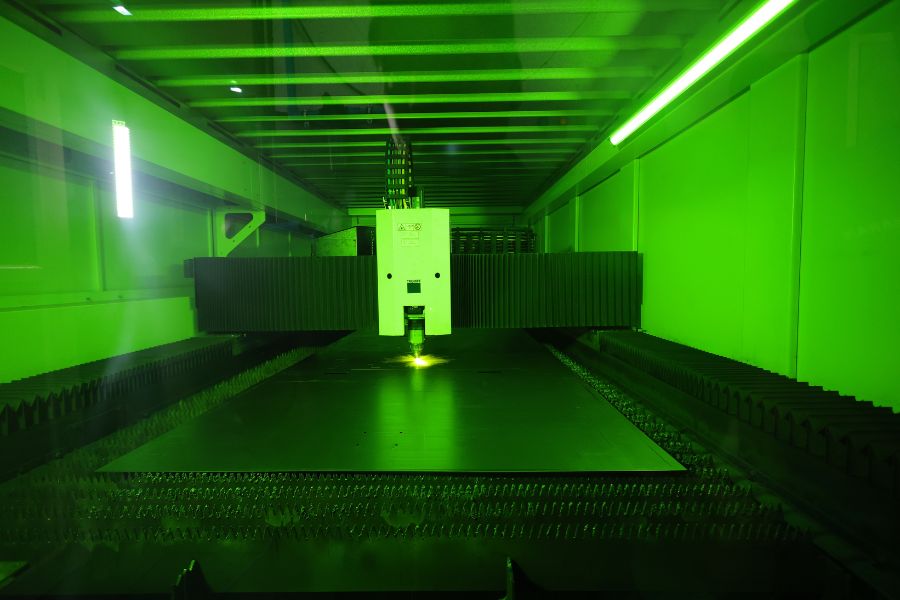

With the CNC laser cutter, the cutting head is moved over the metal plate in the correct form to cut the desired portion out of it. Cutting plates with a capacitive height control mechanism provide an extremely precise distance. In order to identify where the focal point is in relation to the plate, this distance must be taken into account.
In addition to the numerous other variables that may impact the quality of a cut, laser cutting is a steady, dependable, and very precise process when all of them are correctly regulated.
Sharan Elecmech is a leading supplier of acoustic enclosures for diesel generators. Our products are designed to provide soundproofing and protection from noise pollution. Our soundproof acoustic enclosure for blowers is also ideal for vacuum cleaners and other industrial machines.
Contact Sharan Elecmech for the best CNC Laser Cutting Service

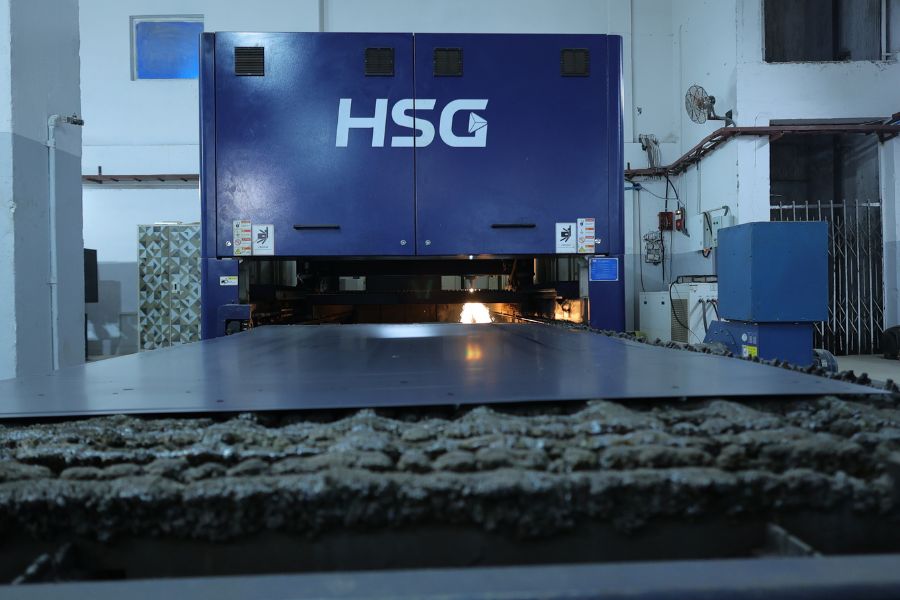

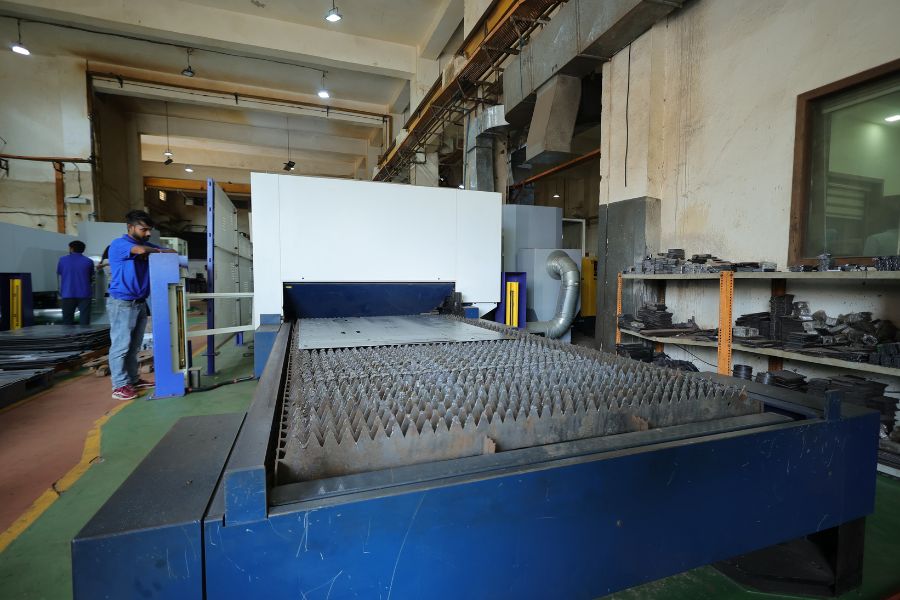

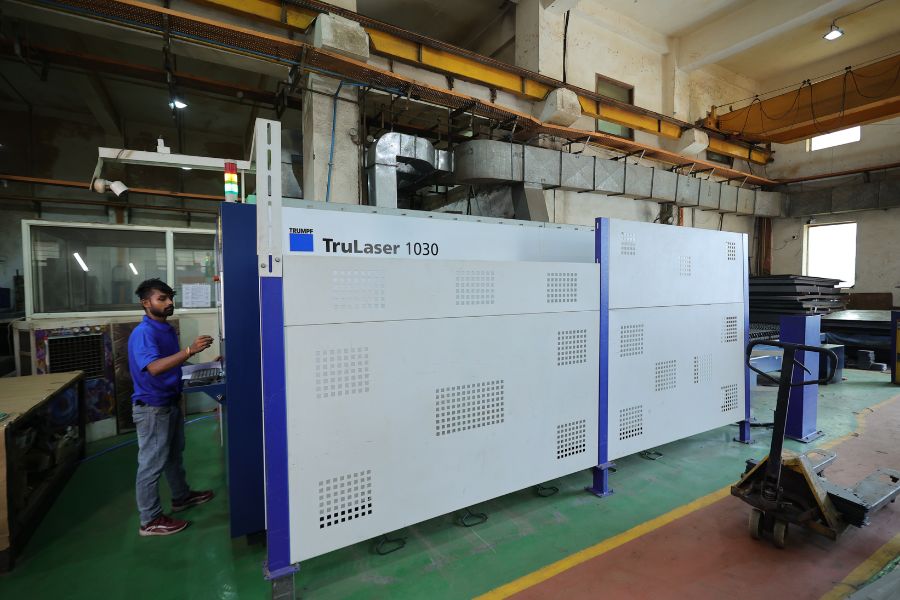

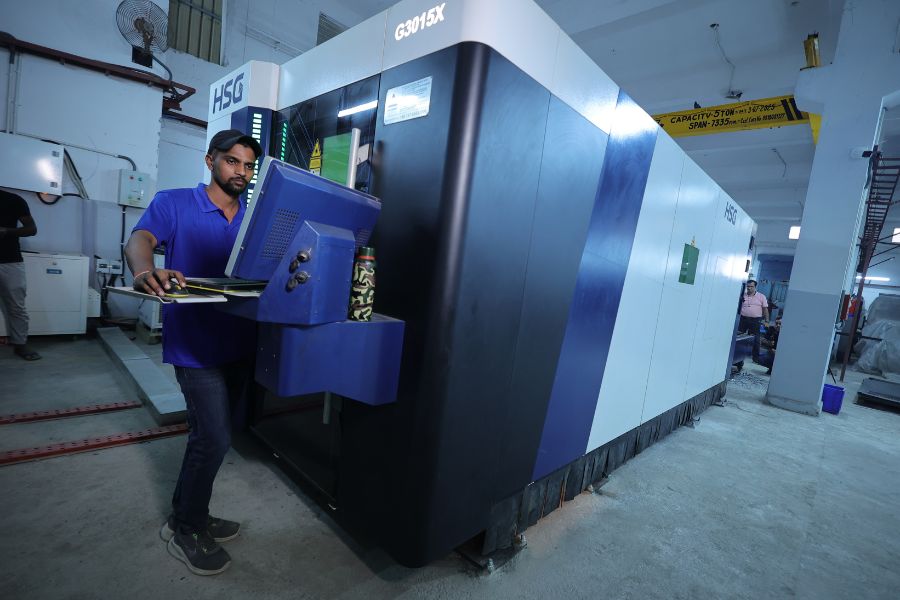

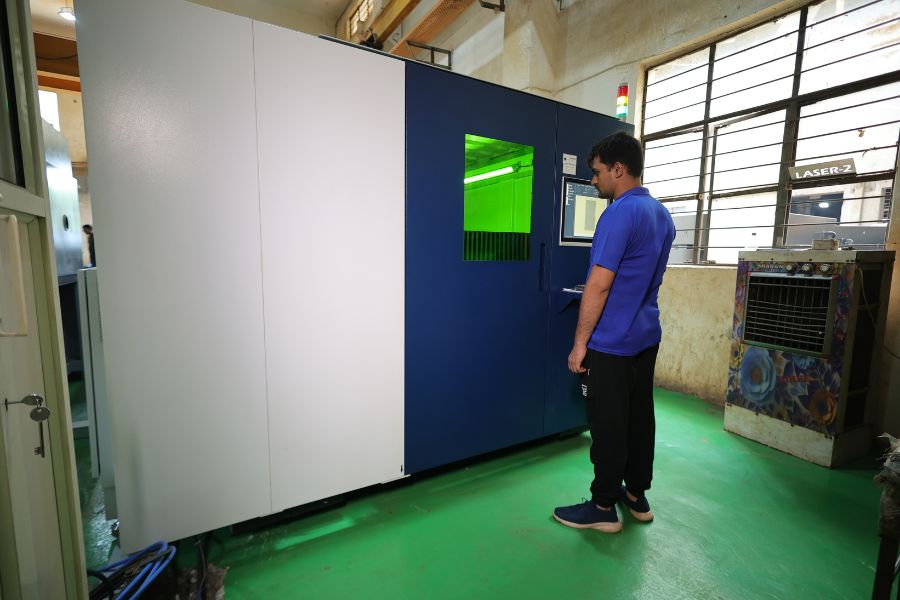

A cutting-edge 6000-watt laser powers Sharan Elecmech’s CNC laser cutting service, resulting in high-quality laser cut parts with laser engraving. On 60″ x 120″ dual pallet tables, our laser cutter can cut through thicker materials like aluminium, mild steel and stainless steel. In terms of precision, laser-cut metal parts are superior to waterjet cutting.
Specs:
- Max Cut Size 3000mmx1500mm
- Mild Steel Up To 20mm Thick
- Stainless Steel Up To 12mm Thick
- Aluminium Up To 8mm Thick
Our advanced CAD/CAM system enables components to be programmed quickly and accurately, ensuring that there are no delays either leading up to or during production. CAD drawings are accepted via e-mail in Autocad, DXF and DWG formats.
CNC Metal Laser Cutting: Automation, Accuracy and Cost Savings
If you’re in the market for a technology that can help you cut metal pieces with accuracy and consistency, then CNC metal laser cutting is the perfect option for you. With this technology, a computer numerical control (CNC) system and a focused laser beam heat and melt the metal into the exact shape that is needed.
